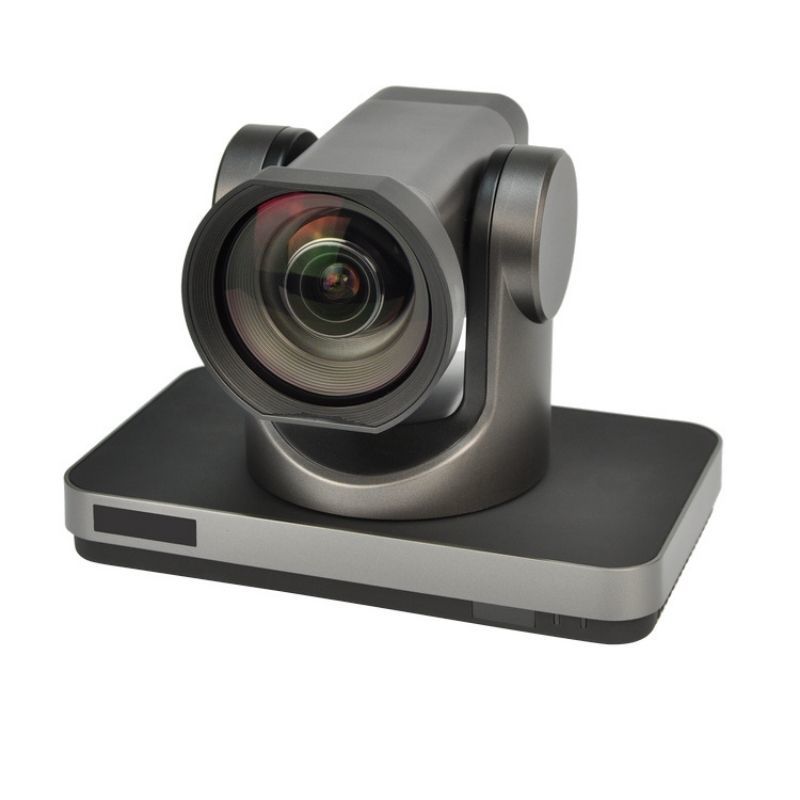

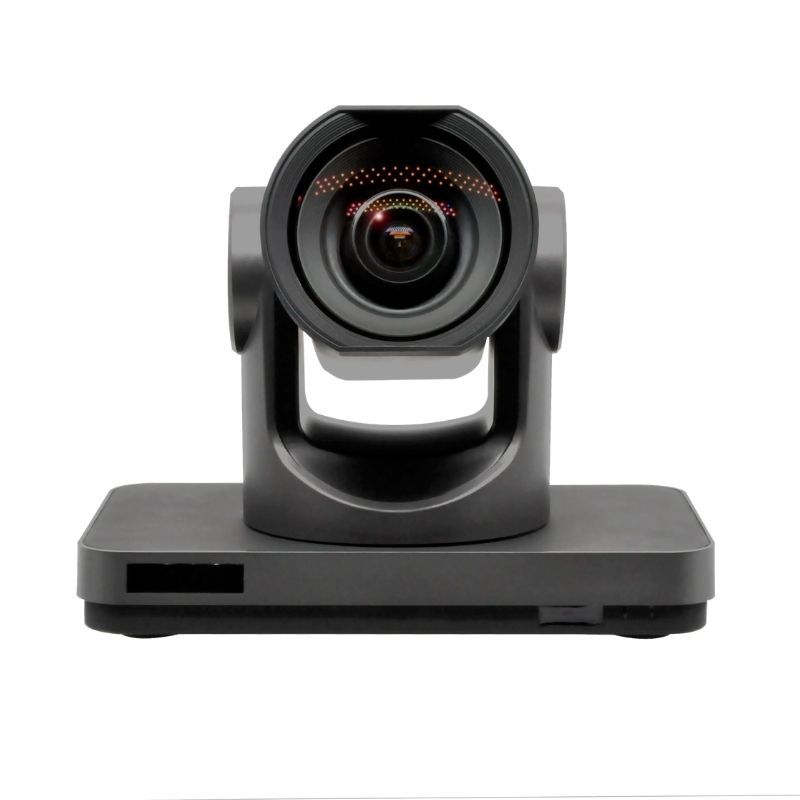

4K 3G-SDI PTZ Video Camera with HDMI Output conference System

4K 3G-SDI PTZ Video Camera with HDMI Output conference System, 12x zoom, Live Streaming, Church Events, send inquiry to aliceavlink@gmail.com

4K 3G-SDI PTZ Video Camera with HDMI Output conference System  Highlights

•  4K Ultra HD
  Apply SONY 1/1.7″ inch, maximum 1240 million effective pixels high quality UHD CMOS sensor, can reach 4K (3840×2160) ultra high resolution and achieve quality image, downward compatible with 1080P and 720P, etc.
•  HDMI 1.4/2.0
  Support HDMI 1.4/2.0, can directly output 4K original video.
• Extremely-low latency
• Based on patented 4K ISP solution, extremely low latency. It is the best choice for high-level instantaneity requirements.
• Abundant & Perfect Interface
  Support HDMI, SDI, IP output 4K video at the same time.
• 12X Wide-Angle Lens
  Use high quality super wide-angle lens, the maximum angle view is 82°, support 12x optical zoom.
• Low-light
• High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, pictures can still keep clean and clear.
• Remote Control
  Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.

• Compatible with Most Softwares:

4K 3G-SDI PTZ Video Camera with HDMI Output conference System Specification

Camera
Video System	4K@60fps(optional), 4K@59.94fps(optional), 4K@50fps(optional),  4K@30fps, 4K@29.97fps, 4K@25fps, 1080P@60fps, 1080P@59.94fps, 1080P@50fps, 1080I@60fps, 1080I@59.94fps, 1080I@50fps, 1080P@30fps, 1080P@29.97fps, 1080P@25fps, 720P@60fps,  720P@59.94fps, 720P@50fps, 720P@30fps, 720P@29.97fps, 720P@25fps
Sensor	1/1.7”, CMOS, Max Effective Pixel: 1240M
Scanning Mode	Progressive
Lens	12x, f = 3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom	12x optical zoom, 16x digital zoom
Minimal Illumination	0.5Lux @ (F1.8, AGC ON)
Shutter	1/30s ~ 1/10000s
White Balance	Auto, Indoor, Outdoor, One Push, Manual, Specified color temperature
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital Noise Reduction
Video S/N	≥55dB
Horizontal Angle of View	82.6° ~ 8°
Vertical Angle of View	51.9° ~ 4.58°
Horizontal Rotation Range	±170°
Vertical Rotation Range	-30° ~ +90°
Pan Speed Range	1.0° ~ 26.2°/s
Tilt Speed Range	0.8° ~ 10.0°/s
H & V Flip	Support
Image Freeze	Support
NDI/PoE	support(optional)
Number of Preset	255
Preset Accuracy	0.1°

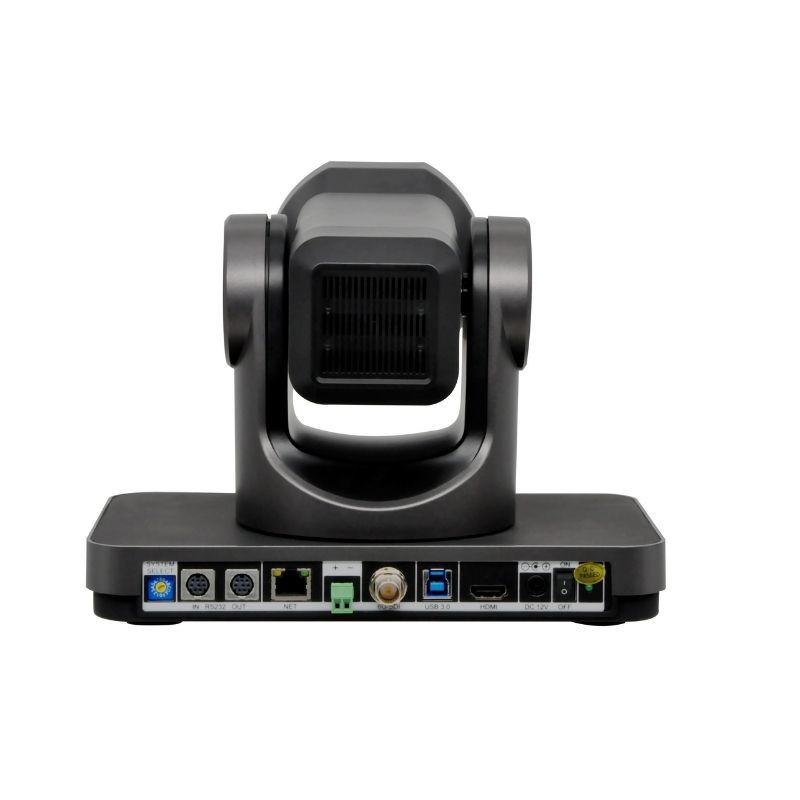

Input/Output Interface
HD Output	1xHDMI: version 1.4 or 2.0
	1xSDI: type BNC, 800mVp-p, 75Ω, SMPTE ST 2081-1, 292M, 424M standard
USB	1xUSB 3.0: type B
Network Interface	1xRJ45: 10M/100M Ethernet Interface
Communication Interface	1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
	1xRS232 Out: 8pin Min DIN, Max Distance: 30m,  VISCA Protocol network used only
	1xRS485: 2pin Phoenix Port, Max Distance: 1200m, VISCA/Pelco-D/Pelco-P Protocol
Power Jack	JEITA type (DC IN 12V)
General Specification
Input Voltage	DC 12V
Current Consumption	2.5A (Max)
Operating Temperature	-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature	-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption	30W (Max)
Size (W*H*D)	240mm x 173mm x 193mm
Net Weight	2.83Kg

4K PTZ Camera with 3G-SDI HDMI Output Specification Download

VX110 4K Video Conference PTZ Camera Specification

AVLink 12x optical 4K UHD PTZ Camera Application:

• Live broadcasting / streaming
• Video Conferencing
• Tele-education
• Tele-medicine
• Lecturer capture
• Distance interview and so on
