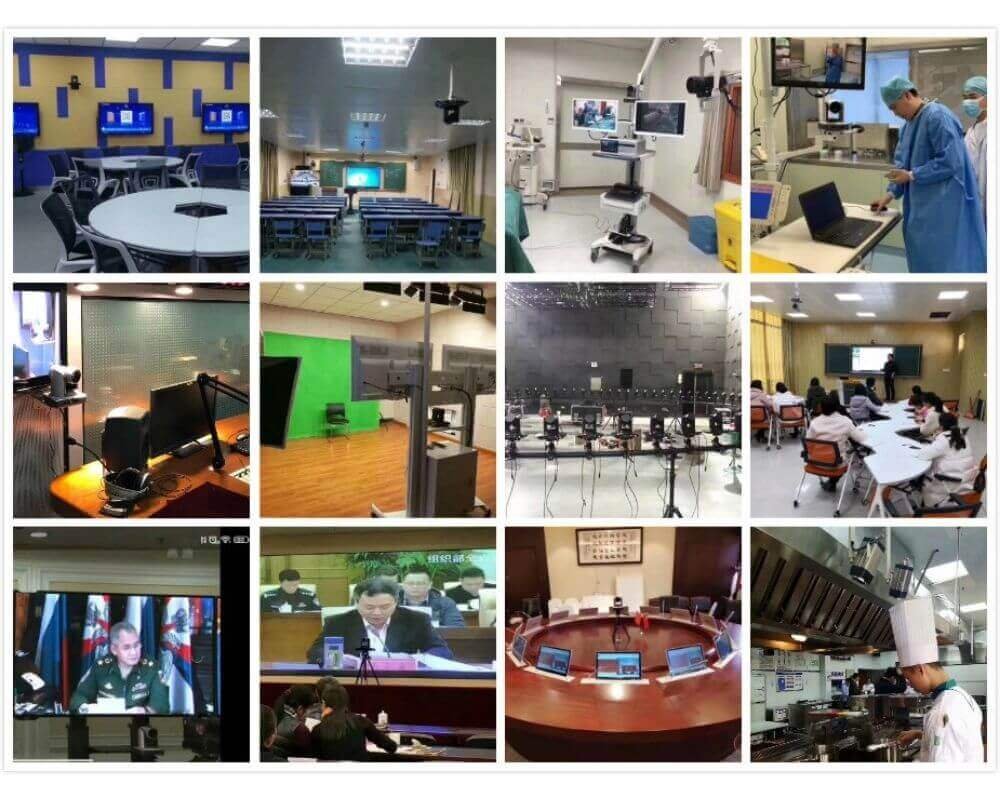

The UV430 4K PTZ Camera, provides the widest viewing angle (81 degrees, horizontal). Support of various 4K interfaces and simultaneous 4K/HD output, the UV430 is the ideal remote camera for higher-end applications in live streaming, broadcasting, events, conferencing, radio, distance learning, church and more.
| Model | UV430 |
|---|---|
| Video Output | 4K@60fps |
| Zoom | 12x |
| Port | HDMI, USB3.0, Lan |
| Interface | RS232, RS485 |
| Protocol | Visca, Pelco-D/P |
| Color | Dark |

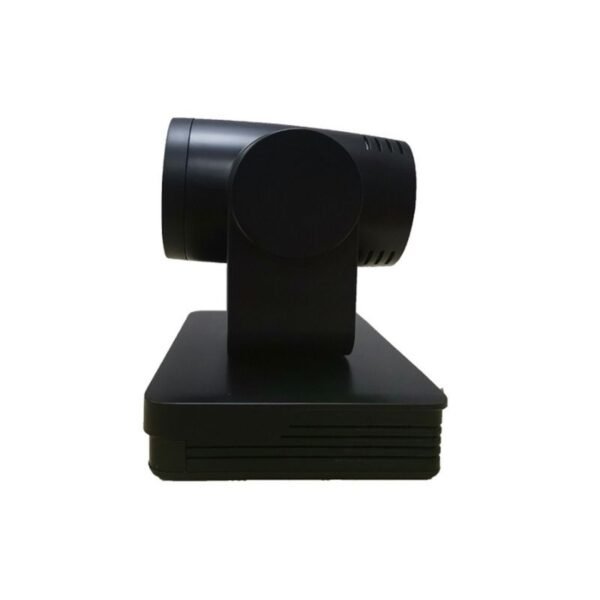

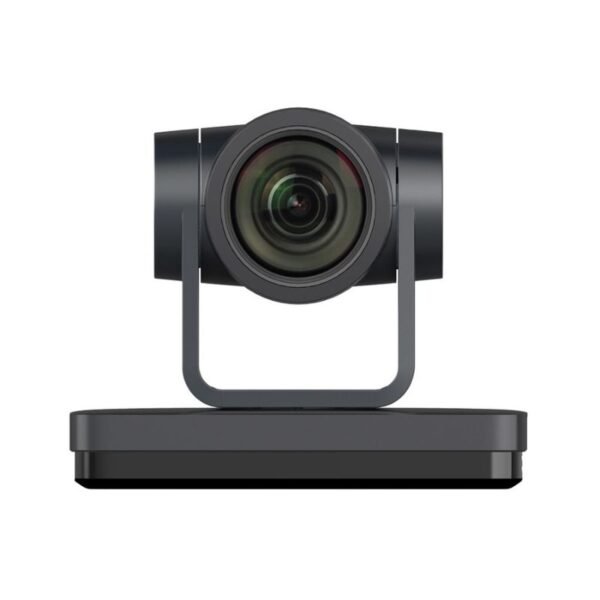

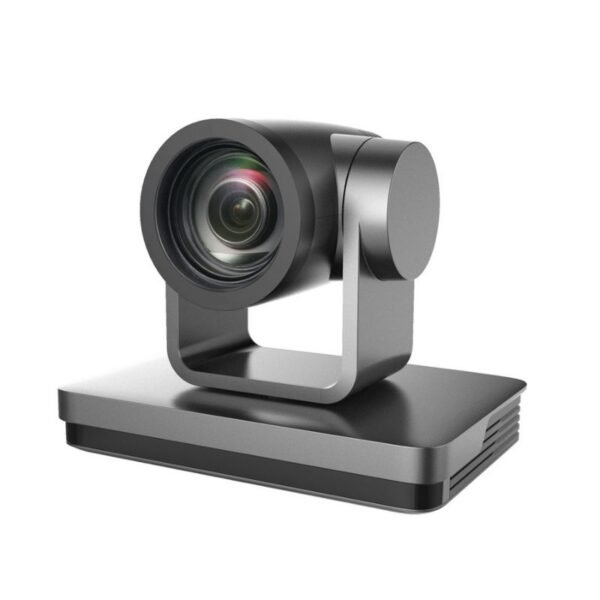

4K Broadcast PTZ Camera With HDMI USB3.0 LAN PoE For vMix software, Live Streaming, Church Events, Video Conferencing, Call 0086 13113688179
12x optical zoom, wide angle 81°(AVL-UV430)
Control by RS232 / RS485, and remote controller, PTZ camera controller
| Camera Parameters | |||
| Optical Zoom | 12X | ||
| FOV | Horizontal: 7.59˚(tele)~ 81˚(wide), Vertical: 4.6˚(tele)~50.0˚(wide) | ||
| Aperture | F1.8 – F3.56±5% | ||
| Image Sensor | 1/2.5 Inch 4K CMOS Sensor | ||
| Effective pixels | 8.51M; 16:9 | ||
| Video Format | HDMI Video Output Format:
4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50, 1080P30, 1080P25, 720P60, 720P50 USB3.0 Video Output Format: YUY2/NV12: 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264: 3840×2160P30fps, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 USB3.0 downward compatible USB2.0: YUY2/NV12: 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264: 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 |
||
| Minimum Illumination | 0.05Lux (F1.8, AGC ON) | ||
| DNR | 2D & 3D DNR | ||
| White Balance | Auto / Manual/ One Push/ Specified Color Temperature | ||
| Focus | Auto / Manual/ One Push | ||
| exposure mode | Auto/ Manual / Shutter Priority / Aperture Priority / Brightness priority | ||
| Aperture | F1.8 – F11, CLOSE | ||
| shutter speed | 1/25 – 1/10000 | ||
| BLC | OFF/ON | ||
| Dynamic range | OFF/ Dynamic Level Adjustment | ||
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | ||
| SNR | ≥50dB | ||
| Interface Features | |||
| Interfaces | HDMI, LAN(POE), USB3.0( Type B, compatible with USB2.0), A-IN, RS232-in & out;
RS422（Compatible with RS485）, Dial switch, DC12V, Power Switch |
||
| Video Compression | LAN: H.264, H.265. USB 3.0: MJPG, H264, YUY2, NV12 | ||
| Audio-in Interface | Double track 3.5mm linear Input | ||
| Audio out | HDMI, LAN, USB3.0 | ||
| Audio Compression | AAC, MP3, G.711A | ||
| LAN | 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output | ||
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset | ||
| Control Interface | RS232-IN, RS232-OUT, RS422 (RS485) | ||
| Serial Protocol | VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400 | ||
| USB Communication Protocol | UVC(video), UAC(audio) | ||
| Power Interface | HEC3800 (DC12V) | ||
| Power Adapter | In: AC110V-AC220V ; Out: DC12V/2.5A | ||
| Input Voltage | DC12V±10% | ||
| Input Current | <1A | ||
| Power Consumption | <12W | ||
| PTZ Parameters | |||
| Pan Rotation | -170°～+170° | ||
| Tilt Rotation | -30°～+90° | ||
| Pan Control Speed | 0.1°/s～120°/s | ||
| Tilt Control Speed | 0.1°/s～80°/s | ||
| Preset Speed | Pan: 120°/s，Tilt: 80°/s | ||
| Preset Number | 255 Presets (10 presets by remote control) | ||
| Other Parameters | |||
| Working Temperature | -10℃～+50℃ | ||
| Working Humidity | 20%～80% | ||
| Dimension | 220mm (L) × 144mm (W)× 159mm (H) | ||
| Usage | 1.7 kg | ||
| Storage Temperature | Indoor | ||
| Accessories | |||
| Standard | Power supply and adapter,RS232 Cable,USB3.0 Cable, IR remote control, User Manual, ceiling/wall bracket | ||
UV430 4K Video Conference PTZ Camera Specification
