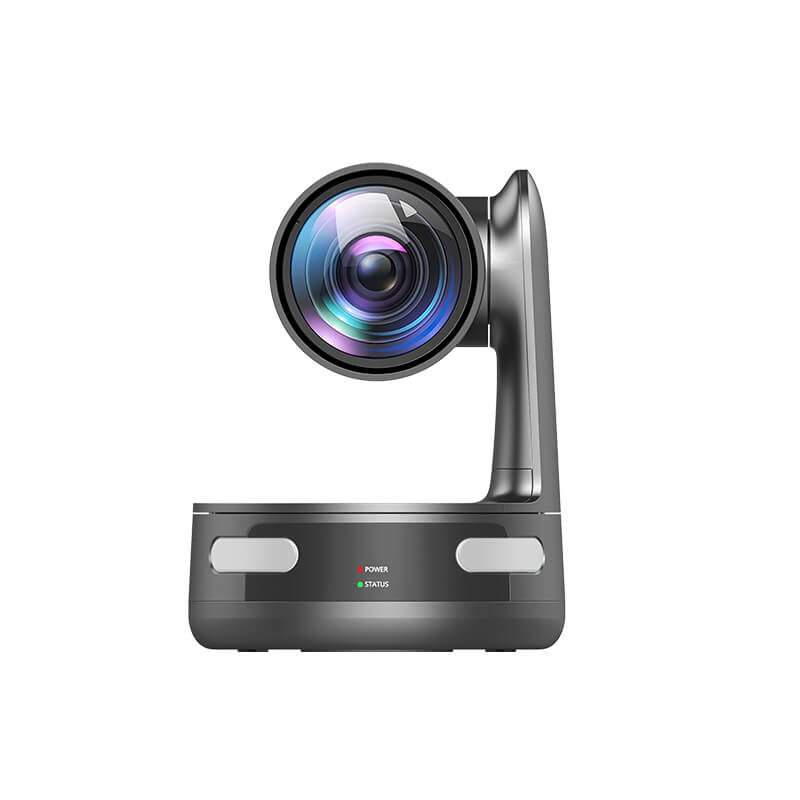

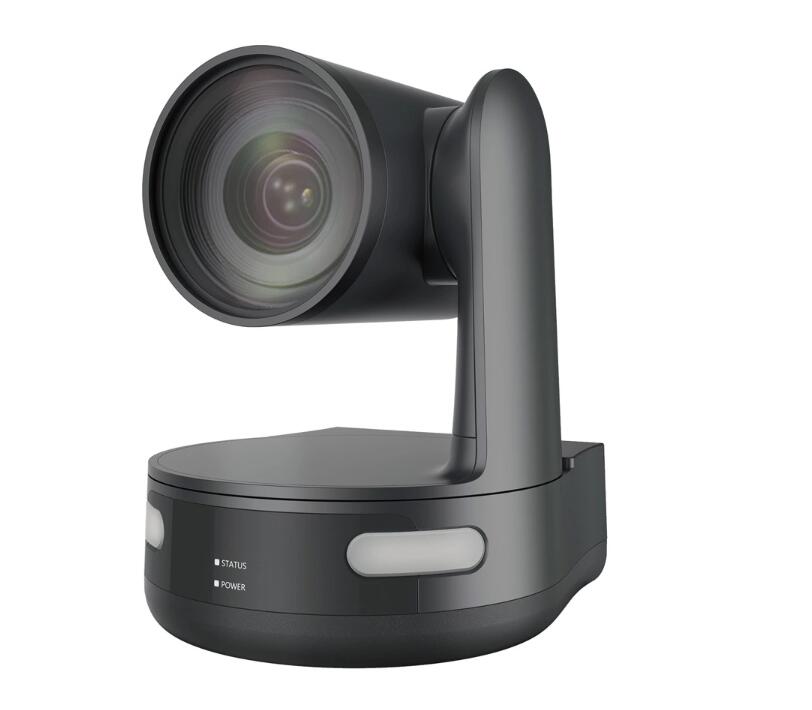

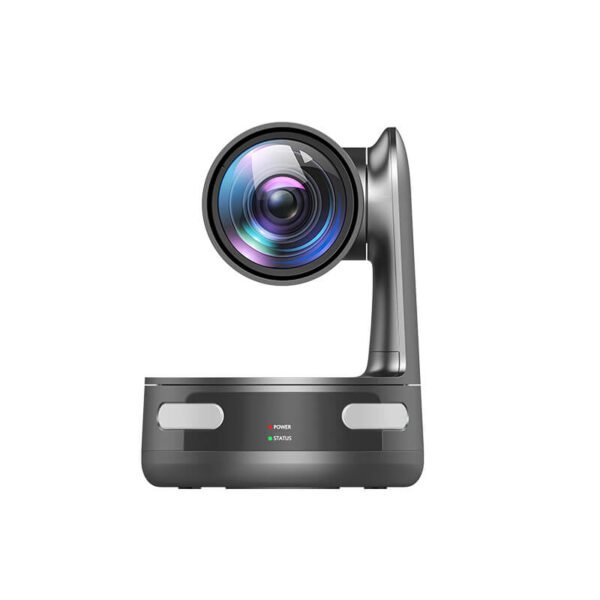

AVLink 4K PTZ Camera, UV401 features a large 1/2.5″ Sony CMOS sensor, supports high-quality 4K/UHD 60p video output, features a 80.4-degree viewing angle, 12x optical zoom and supports versatile outputs, including HDMI, optical fiber and IP.
The UV401 is the best choice for taking your live streaming remote production to the upper level.
| Model | UV401 |
|---|---|
| Video Output | 4K@60fps |
| Zoom | 12x |
| Port | HDMI, USB3.0, Lan |
| Interface | RS232, RS485 |
| Protocol | Visca, Pelco-D/P |
| Color | Dark |
4K UHD POE HDMI PTZ Camera With USB IP For Broadcasting, 12x optical Live Streaming, Church Events, Video Conferencing, Call 0086 13113688179
Control by RS232 / RS485, and remote controller, PTZ camera controller
| Camera Parameters | |||
| Optical Zoom | 12X | ||
| FOV | Horizontal: 7.59˚（tele）～ 80.4˚（wide） vertical: 4.6˚（tele）～ 50.0˚（wide） | ||
| Aperture | F3.85 – F43.06±5% | ||
| Image Sensor | 1/2.5 Inch 4K Sony CMOS Sensor | ||
| Effective pixels | 8.51M; 16:9 | ||
| Video Format | HDMI Video Output Format: 4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50, 1080P30, 1080P25, 720P60, 720P50 USB3.0 Video Output Format: YUY2/NV12: 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264: 3840×2160P30fps, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 USB3.0 downward compatible USB2.0: YUY2/NV12: 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264: 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 | ||
| Minimum Illumination | 0.05Lux (F1.8, AGC ON) | ||
| DNR | 2D & 3D DNR | ||
| White Balance | Auto / Manual/ One Push/ Specified Color Temperature | ||
| Focus | Auto / Manual/ One Push | ||
| exposure mode | Auto/ Manual / Shutter Priority / Aperture Priority / Brightness priority | ||
| Aperture | F1.8 – F11, CLOSE | ||
| shutter speed | 1/25 – 1/10000 | ||
| BLC | OFF/ON | ||
| Dynamic range | OFF/ Dynamic Level Adjustment | ||
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | ||
| SNR | ≥50dB | ||
| Interface Features | |||

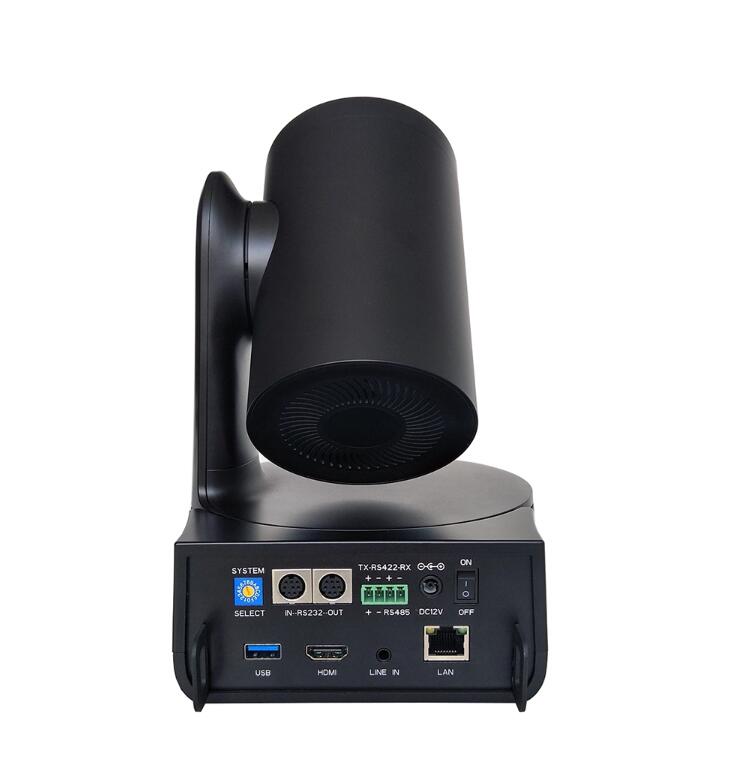

| Interfaces | HDMI, LAN(POE), USB3.0( Type B, compatible with USB2.0), A-IN, RS232-in & out; RS422（Compatible with RS485), Dial switch, DC12V, Power Switch | ||
| Video Compression | LAN: H.264, H.265. USB 3.0: MJPG, H264, YUY2, NV12 | ||
| Audio-in Interface | Double track 3.5mm linear Input | ||
| Audio out | HDMI, LAN, USB3.0 | ||
| Audio Compression | AAC, MP3, G.711A | ||
| LAN | 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output | ||
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset | ||
| Control Interface | RS232-IN, RS232-OUT, RS422 (RS485) | ||
| Serial Protocol | VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400 | ||
| USB Communication Protocol | UVC(video), UAC(audio) | ||
| Power Interface | HEC3800 (DC12V) | ||
| Power Adapter | In: AC110V-AC220V ; Out: DC12V/2.5A | ||
| Input Voltage | DC12V±10% | ||
| Input Current | <1A | ||
| Power Consumption | <12W | ||
| PTZ Parameters | |||
| Pan Rotation | -170°～+170° | ||
| Tilt Rotation | -30°～+90° | ||
| Pan Control Speed | 0.1°/s～120°/s | ||
| Tilt Control Speed | 0.1°/s～80°/s | ||
| Preset Speed | Pan: 120°/s，Tilt: 80°/s | ||
| Preset Number | 255 Presets (10 presets by remote control) | ||
| Other Parameters | |||
| Working Temperature | -10℃～+50℃ | ||
| Working Humidity | 20%～80% | ||
| Dimension | 157.5mm (L) × 189mm (W)× 201mm (H) | ||
| Usage | 2.6kg | ||
| Storage Temperature | Indoor | ||
| Accessories | |||
| Standard | Power supply and adapter,RS232 Cable,USB3.0 Cable, IR remote control, User Manual, ceiling/wall bracket | ||
UV401 4K Video Conference PTZ Camera Specification
